1. 参考资料

http://blog.csdn.net/jssg_tzw/article/details/69791330
http://blog.itpub.net/27067062/viewspace-2142098
http://www.sohu.com/a/165178082_505827

2. 卸载MySQL

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
#最简单的方法就是yum卸载自带的MySQL5.1
yum remove mysql mysql-server mysql-libs mariadb-libs compat-mysql51
rm -rf /var/lib/mysql
rm /etc/my.cnf
#查看是否还有mysql软件:
rpm -qa|grep mysql
#有的话继续删除,这样会把系统定时任务的 crontab也删除,需要的话需要重新安装.
yum install vixie-cron crontabs
systemctl enable crond       #设置crond服务开机自动启动
systemctl start crond        #启动crond服务

3. 安装MySQL

安装MySQL的依赖包

1
yum install libaio libaio-devel numactl net-tools perl perl-devel openssl openssl-devel

下载RPM整体包 http://dev.mysql.com/downloads/mysql/
这里选择 Red Hat Enterprise Linux / Oracle Linux 下载MySQL

这个压缩包里包含所有的MySQL的RPM包,安装rpm包

1
rpm -ivh mysql-community-common-8.0.21-1.el7.x86_64.rpm mysql-community-libs-8.0.21-1.el7.x86_64.rpm mysql-community-client-8.0.21-1.el7.x86_64.rpm mysql-community-server-8.0.21-1.el7.x86_64.rpm mysql-community-libs-compat-8.0.21-1.el7.x86_64.rpm mysql-community-embedded-compat-8.0.21-1.el7.x86_64.rpm mysql-community-devel-8.0.21-1.el7.x86_64.rpm

4. 启动MySQL

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
#初始化mysql,安装错误可以删除data目录,重新初始化
mysqld --initialize
#修改文件夹权限
chown -R mysql:mysql /var/lib/mysql
#启动MySQL
systemctl enable mysqld
systemctl start mysqld
#查找初始化密码
grep password /var/log/mysqld.log

#登录MySQL: mysql -uroot -pxxxx
#更新root密码为Root+1qazxsw2
#SET PASSWORD=PASSWORD('Root+1qazxsw2');
ALTER USER 'root'@'localhost' IDENTIFIED BY 'Root+1qazxsw2';

5. 创建测试的数据库(非必须)

1
2
3
4
5
6
7
8
-- 创建数据库
create database db1;
-- 创建用户
CREATE USER test1@'127.0.0.1' IDENTIFIED BY 'Test1+12345';
-- 给数据库分配所有权
GRANT ALL PRIVILEGES ON db1.* TO test1@'127.0.0.1';
-- 执行测试的t_user.sql语句
source /root/t_user.sql;

6. 配置MGR

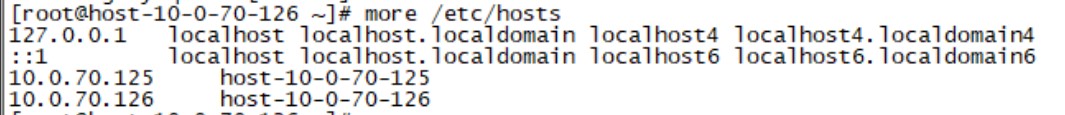

6.1.修改host文件

修改每台机器的host文件,确保可以正常解析主机名.

mysql> select * from performance_schema.replication_group_members;
MySQL MGR members记录使用了服务器的host,而不是IP.

修改host文件

6.2.创建复制用户(第一个Master执行)

创建复制用户binlog不能记录,否则会引起START GROUP_REPLICATION执行报错.先关闭binlog日志,添加好再打开binlog日志.

1
2
3
4
5
6
7
#SET SQL_LOG_BIN=0;
create user 'mysqlmgruser'@'%' identified with 'mysql_native_password' by '5j2;hoqbkbUF';
grant replication slave on *.* to 'mysqlmgruser'@'%' with grant option;
#FLUSH PRIVILEGES;
#SET SQL_LOG_BIN=1;
reset master;
change master to master_user='mysqlmgruser',master_password='5j2;hoqbkbUF' for channel 'group_replication_recovery';

6.3.安装group replication插件(三台都要安装)

1
2
3
install PLUGIN group_replication SONAME 'group_replication.so';
-- 查看group replication组件
show plugins;
Name Status Type Library License
group_replication ACTIVE GROUP REPLICATION group_replication.so GPL

6.4.配置

下载MGR配置示例

6.5.启动group replication

– 设置group_replication_bootstrap_group为ON是为了标示作为首个节点启动mgr集群,以后加入的就不能设置.如果是开机自启动,start group_replication就无需执行了.

1
2
3
mysql> set global group_replication_bootstrap_group=ON;
mysql> start group_replication;
mysql> set global group_replication_bootstrap_group=OFF;

6.6.查看MGR状态

– 查询表performance_schema.replication_group_members
mysql> select * from performance_schema.replication_group_members;
+—————————+————————————–+——————+————-+————–+ | CHANNEL_NAME | MEMBER_ID | MEMBER_HOST | MEMBER_PORT | MEMBER_STATE | +—————————+————————————–+——————+————-+————–+ | group_replication_applier | 1d105439-d041-11e7-960b-fa163ebd7d48 | host-10-0-70-125 | 3306 | ONLINE | +—————————+————————————–+——————+————-+————–+

6.7.添加组内其他成员

参照以上过程和配置,配置其他组的MySQL,记得修改my.cnf

1
2
3
server-id
loose-group_replication_local_address
loose-group_replication_group_seeds

启动group replication 时,执行命令是:
mysql> start group_replication;

若失败可以强制加入复制组,MySQL8不再支持支持这个参数
mysql> set global group_replication_allow_local_disjoint_gtids_join=ON;
其他不变

6.8.错误问题及汇总

参考:https://blog.csdn.net/wangxiaotongfan/article/details/81870258

1.错误案例01

错误信息:2017-07-15T01:36:06.929941Z 4 [ERROR] Plugin group_replication reported: ‘The group name ‘group-replication-test’ is not a valid UUID’

错误原因:loose-group_replication_group_name参数没有按照UUID格式指定,被认为设置该参数无效

解决方案:更改loose-group_replication_group_name参数值为,loose-group_replication_group_name=“2faa74b8-66bb-11e7-ab7e-b8ca3a6a61ec”

2.错误案例02

错误信息:

2017-07-15T01:29:27.271909Z 0 [Warning] unknown variable ‘loose-group_replication_group_name=group-replication-test’

2017-07-15T01:29:27.271926Z 0 [Warning] unknown variable ‘loose-group_replication_start_on_boot=off’

2017-07-15T01:29:27.271930Z 0 [Warning] unknown variable ‘loose-group_replication_local_address=10.26.7.129:3306’

2017-07-15T01:29:27.271935Z 0 [Warning] unknown variable ‘loose-group_replication_group_seeds=10.26.7.129:3306,10.26.7.142:3306,10.26.7.166:3306’

2017-07-15T01:29:27.271939Z 0 [Warning] unknown variable ‘loose-group_replication_bootstrap_group=off’

错误原因:因为先设置了这些参数,而没有装group_replication插件,导致数据库实例无法识别这些参数

解决方案:安装group replication插件,install plugin group_replication soname ‘group_replication.so’; (uninstall plugin group_replication 卸载,show plugins查看)

3.错误案例03

错误信息:

2017-07-15T01:54:54.447829Z 0 [Note] Plugin group_replication reported: ‘Unable to bind to 0.0.0.0:3306 (socket=60, errno=98)!’

2017-07-15T01:54:54.447948Z 0 [ERROR] Plugin group_replication reported: ‘Unable to announce tcp port 3306. Port already in use?’

2017-07-15T01:54:54.448101Z 0 [ERROR] Plugin group_replication reported: ‘[GCS] Error joining the group while waiting for the network layer to become ready.’

错误原因:配置的组复制监听端口和MYSQL实例端口冲突

解决方案:调整下面参数

loose-group_replication_local_address =“10.26.7.129:24001” #不同节点配置不同节点本身的IP地址和端口,区分MYSQL自身的3306端口

loose-group_replication_group_seeds =“10.26.7.129:24001,10.26.7.142:24001,10.26.7.166:24001”

4.错误案例04

错误信息:

2017-07-15T04:20:01.249529Z 21 [ERROR] Slave I/O for channel ‘group_replication_recovery’: error connecting to master ‘rpl_user@node2:3306’ - retry-time: 60 retries: 1, Error_code: 2005

错误原因:没有配置DNS解析或者hosts解析,节点无法连接其他数据库

解决方案:配置hosts解析,每个节点/etc/hosts添加如下内容

1
2
3
10.26.7.166 node3
10.26.7.142 node2
10.26.7.129 node1

5.错误案例05

错误信息

2017-07-15T03:42:45.395407Z 288 [ERROR] Slave SQL for channel ‘group_replication_recovery’: Error ‘Can’t create database ‘db01’; database exists’ on query. Default database: ‘db01’. Query: ‘create database db01’, Error_code: 1007

2017-07-15T03:42:45.395472Z 288 [Warning] Slave: Can’t create database ‘db01’; database exists Error_code: 1007

2017-07-15T03:42:45.395503Z 288 [ERROR] Error running query, slave SQL thread aborted. Fix the problem, and restart the slave SQL thread with “SLAVE START”. We stopped at log ‘mysql-bin.000005’ position 434

错误原因:这个错误是由于节点由于各种原因退出mgr组,后面又加入了mgr组,但之前存在的数据依旧存在

解决方案:删除要加入组复制节点存在的数据库即可,但其他节点不是主写节点,需要先调整参数set global super_read_only=0;然后执行drop database db01;再重新加入组

set global group_replication_allow_local_disjoint_gtids_join=ON;

start group_replication;

6.错误案例06

错误信息:

2017-07-15T03:44:09.982428Z 18 [ERROR] Slave SQL for channel ‘group_replication_recovery’: Error ‘Can’t create database ‘db01’; database exists’ on query. Default database: ‘db01’. Query: ‘create database db01’, Error_code: 1007

2017-07-15T03:44:09.982493Z 18 [Warning] Slave: Can’t create database ‘db01’; database exists Error_code: 1007

2017-07-15T03:44:09.982522Z 18 [ERROR] Error running query, slave SQL thread aborted. Fix the problem, and restart the slave SQL thread with “SLAVE START”. We stopped at log ‘mysql-bin.000005’ position 434

错误原因:同上错误案例05

解决方案:同上错误案例05

7.错误案例07

错误信息:

2017-07-15T03:49:10.370846Z 0 [ERROR] Plugin group_replication reported: ‘This member has more executed transactions than those present in the group. Local transactions: 2faa74b8-66bb-11e7-ab7e-b8ca3a6a61ec:1-4, 35e38786-66bb-11e7-bcc3-b8ca3a6a61a4:1
Group transactions: 2faa74b8-66bb-11e7-ab7e-b8ca3a6a61ec:1-16’

错误原因:同上错误案例05,在从库执行了多余的事务

解决方案:同上错误案例05,直接重新加入节点即可

set global group_replication_allow_local_disjoint_gtids_join=ON;

start group_replication;

8.错误案例08

错误信息

ERROR 3098 (HY000): The table does not comply with the requirements by an external plugin.

错误原因:由于主节点创建了表t1,但没有指定主键(此时表结构可以复制到各节点,一旦插入数据DML操作即会报错)

解决方案:为表增加主键,然后做DML操作(MGR需要各表都有主键)

alter table t1 add primary key(id);

insert into t1 values(1),(2);

9.错误案例09

错误信息:

mysqldump -R -E –triggers –single-transaction –master-data=2 -B db01 >db01.sql

Warning: A partial dump from a server that has GTIDs will by default include the GTIDs of all transactions, even those that changed suppressed parts of the database. If you don’t want to restore GTIDs, pass –set-gtid-purged=OFF. To make a complete dump, pass –all-databases –triggers –routines –events.

mysqldump: Couldn’t execute ‘SAVEPOINT sp’: The MySQL server is running with the –transaction-write-set-extraction!=OFF option so it cannot execute this statement (1290)

错误原因:mgr不支持mysqldump的事务一致性备份,因为其不支持savepoint

解决方案:通过xtrabackup或者不加–single-transaction备份

10.错误案例10

错误信息:

create table t2 as select * from t1;

ERROR 1786 (HY000): Statement violates GTID consistency: CREATE TABLE … SELECT.

错误原因:配置MGR,开启了GTID,所有GTID不支持的操作,MGR也不支持

解决方案:使用create table t2 like t1; insert into t2 select * from t;分开两个事务执行

7. 数据库主从(建议使用MGR)

7.1.安装从数据库

按照上述步骤,在另一台服务器上安装mysql数据库,并创建db1测试数据库.

7.2.master数据库

主数据库服务器:10.0.8.137,从数据库服务器:10.0.8.138
修改主服务器的配置文件:
vi /etc/my.cnf
添加以下内容:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
log_bin = mysql-bin
log_bin_index = mysql-bin.index
server-id=1
default_password_lifetime=0
expire_logs_days=300
max_connections=5000
character_set_erver=utf8mb4
##需要同步的数据库名字,如果是多个,就以此格式再写一行即可
##建议暂时不要使用
#binlog-do-db = db1
#binlog-ignore-db=mysql

log-bin 配置的是开启二进制日志,并将日志写在配置的路径上.记录的日志将以mysql-bin.000001 的方式进行记录.
log-bin-index 配置的是二进制日志记录文件的目录.该文件中每一行都是二进制日志文件的路径.
server-id是该MySQL服务器的服务ID,用于区分在主从配置中的其他服务器,配置成功后,重启mysqld服务.
注意:如果不定义log-bin的文件名,则会以hostname主机名命名,一旦主机名修改,则会因为找不见二进制文件报错.所以最好还是显示指定文件名.

7.3.slave数据库

修改slave的/etc/my.cnf配置文件,在[mysqld]下添加如下配置:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
server-id = 2
relay_log = relay-bin
relay_log_index = relay-bin.index
read_only=on
default_password_lifetime=0
expire_logs_days=300
max_connections=1000
character-set-server=utf8mb4
##需要同步的数据库名字,如果是多个,就以此格式再写一行即可
##建议暂时不要使用
#replicate-do-db = db1
##不需要同步的数据库名字,如果是多个,就以此格式再写一行即可
##建议暂时不要使用
#replicate-ignore-db = mysql
#需要注释二进制日志
#log_bin = mysql-bin

server_id和master意义一样,用于区分不同的mysql服务器
relay_log用以记录收到的中继二进制日志.
relay_log_index用以保存收到的日志路径索引.如果不显示指定文件名,则以hostname值命名.保存后可以重启mysqld服务.
read_only=on 是保证从库是只读状态,避免手误进行写入操作,造成数据异常.

7.4.连接Master服务器

创建在master上创建备份用户
mysql>GRANT REPLICATION SLAVE ON . TO ‘backup’@‘10.0.8.138’ IDENTIFIED BY ‘Backup+1qazxsw2’;
mysql>FLUSH PRIVILEGES;
在slave上启动slave与master的连接.在slave上登录到mysql,在mysql>:下进行操作
mysql> stop slave; //停止slave 同步
mysql> change master to master_host = ‘10.0.8.137’, master_user=‘backup’, master_password=‘Backup+1qazxsw2’, MASTER_AUTO_POSITION = 1;
mysql> start slave; // 开始slave 复制
检查主从是否配置成功,在slave的服务器上查看
mysql> show slave status\G;
在打印出来的状态下,查看以下两个参数的值:

1
2
Slave_IO_Running: Yes
Slave_SQL_Running: Yes

如果这两个参数的值都是yes,则运行正常,可以在master数据库上添加一个数据库或者添加一张表,检查slave数据库上是否存在,如果这两个参数有任何一个不是 Yes,则说明存在问题.可以查看slave上的数据库错误日志文件查看错误原因.

7.5.常见错误原因

1.server-id一致
2.用户权限不够.需要的权限包括:

1
GRANT REPLICATION SLAVE,RELOAD,CREATE USER,SUPER ON *.* TO USER@'IP_ADDR' IDENTIFIED BY 'PASSWORD' WITH GRANT OPTION;

3.数据库UUID一致,如果mysql安装时是通过批量复制安装的,则有可能数据库的UUID一致,进入数据库的datadir目录,修改auto.cnf.随意修改下uuid中的值,重启mysqld服务即可
4.Master数据库端口被防火墙阻挡

7.6.主从配置文件

下载主从配置示例

8. 常用维护

show variables like ‘%log_bin%'; //master数据库,log_bin=on
show master status; //master数据库
show slave status; //slave数据库

开机自启动
chkconfig add mysql on
自动备份:
在my.cnf中添加自动备份使用的账号密码,

1
2
3
4
5
[mysqldump]
quick
max_allowed_packet = 16M
user=root
password=Root+1qazxsw2

备份脚本:

1
2
3
4
5
6
 set-gtid-purged=OFF #(不备份GTID)
/usr/bin/mysqldump --set-gtid-purged=OFF --add-drop-table db1 | gzip > /data/backup/db1_$(date +%Y%m%d%H%m%S).sql.gz
#删除db1数据库100天以前的备份.
find /data/backup -type f -mtime +100 -name db1*.sql.gz -exec rm -rf {} ;
#删除所有数据库100天以前的备份
find /data/backup -type f -mtime +100 -name *.sql.gz -exec rm -rf {} ;

定时任务

1
2
crontab -e
0 2 * * * /bin/sh /data/mysqlbackup.
